Technical & Mechanical Specification

General technical parameters:

• CPU: Broadcom BCM2712, quad-core Arm Cortex-A76 (ARM v8) 64-bit SoC @ 2.4 GHz
• VPU: H.265 (HEVC), decoding support up to 4Kp60
• GPU: OpenGL ES 3.1 and Vulkan 1.2
• RAM: 8 GB LPDDR4-4267 SDRAM
• Storage: 64 GB eMMC
• Additional features: RTC, Watchdog, Super-Capacitor, Power-outage sound alert

Mechanical and Environmental specifications:

• Dimensions: approx. 143 mm × 100 mm × 35–55 mm (model dependent)
• Weight: approx. 750 g
• Mounting: DIN-rail mounting supported (with mounting brackets)
• Operating temperature: -25 °C to +60 °C
• Storage temperature: up to +70 °C (depending on model)
• Humidity: 5% to 95% RH, non-condensing
• Enclosure: Industrial metal housing, high durability

Power Input and Consumption:

• Input Voltage: DC 9–36 V, Phoenix-type 2-pin terminal
• Maximum Power Consumption: approx. 24 W
• Recommended PSU: ≥ 30 W
• Protections: Over-voltage, Over-current, Reverse-polarity

Certifications and Compliance:

• CE certified
• FCC (47 CFR Part 15, Subpart B)
• RoHS compliant
• EMC / Safety Standards:
  • EN IEC 62368-1
  • EN 55032 / EN 55035

Warranty, Lifetime, and Support:

• The product includes a 1-year manufacturer’s warranty starting from the date of purchase.
• The device also comes with 2 years of guaranteed software and security update support, ensuring ongoing system reliability and compliance with security standards.

Feature	Description
1	100Mbit Ethernet “LAN” port
2	1Gbit Ethernet “WAN” port
3	I/O pins (Currently not usable)
4	I/O pins (Currently not usable)
5	DC Power IN 9-36V
6	Indicator LED’s

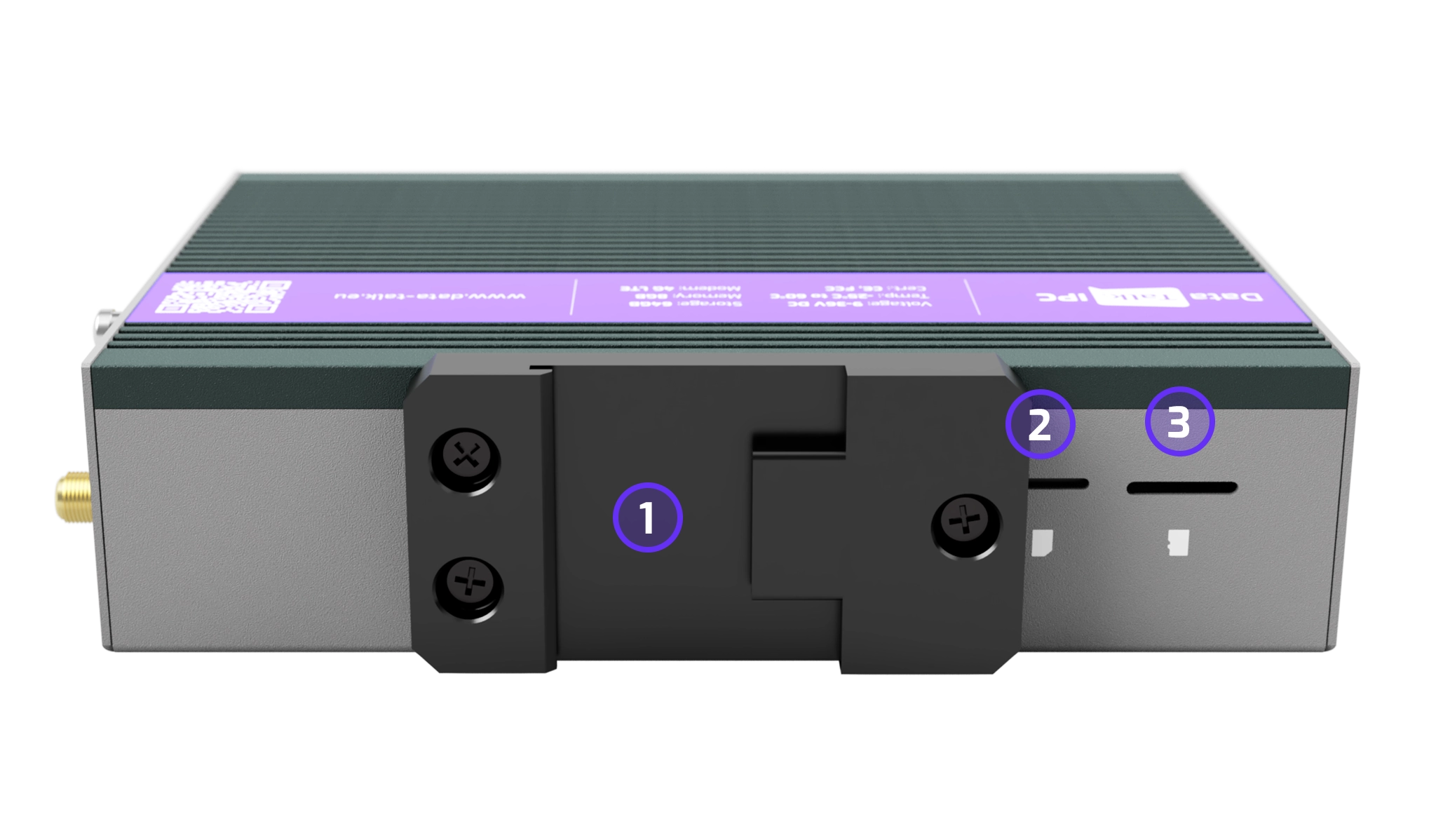

Feature	Description
1	DIN Mount
2	SIM lot
3	SD card slot

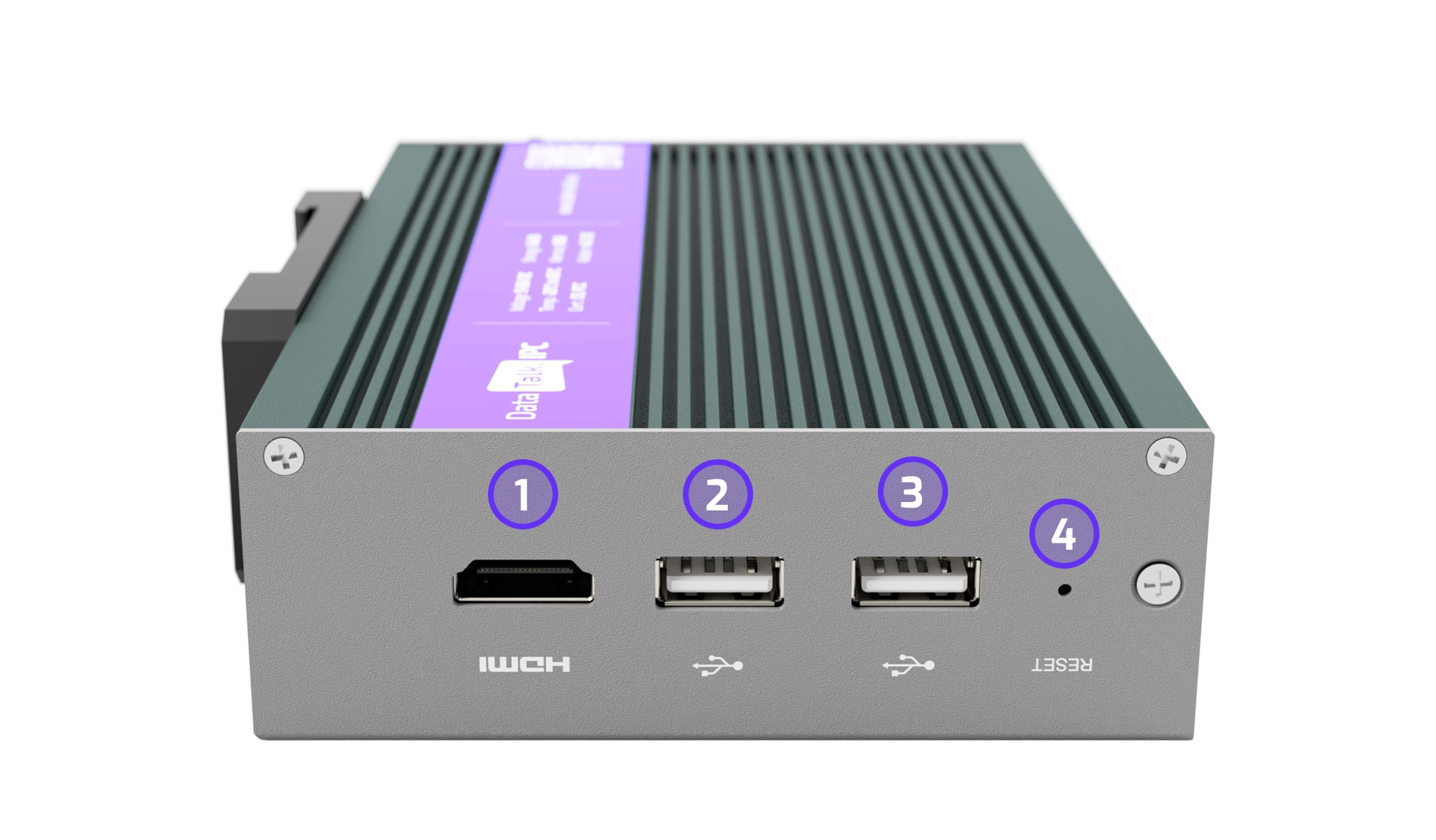

Feature	Description
1	HDMI (Doesn’t show HMI - just console for service)
2	USB 2.0
3	USB 2.0
4	Reset button (Not for factory reset - just system restart)

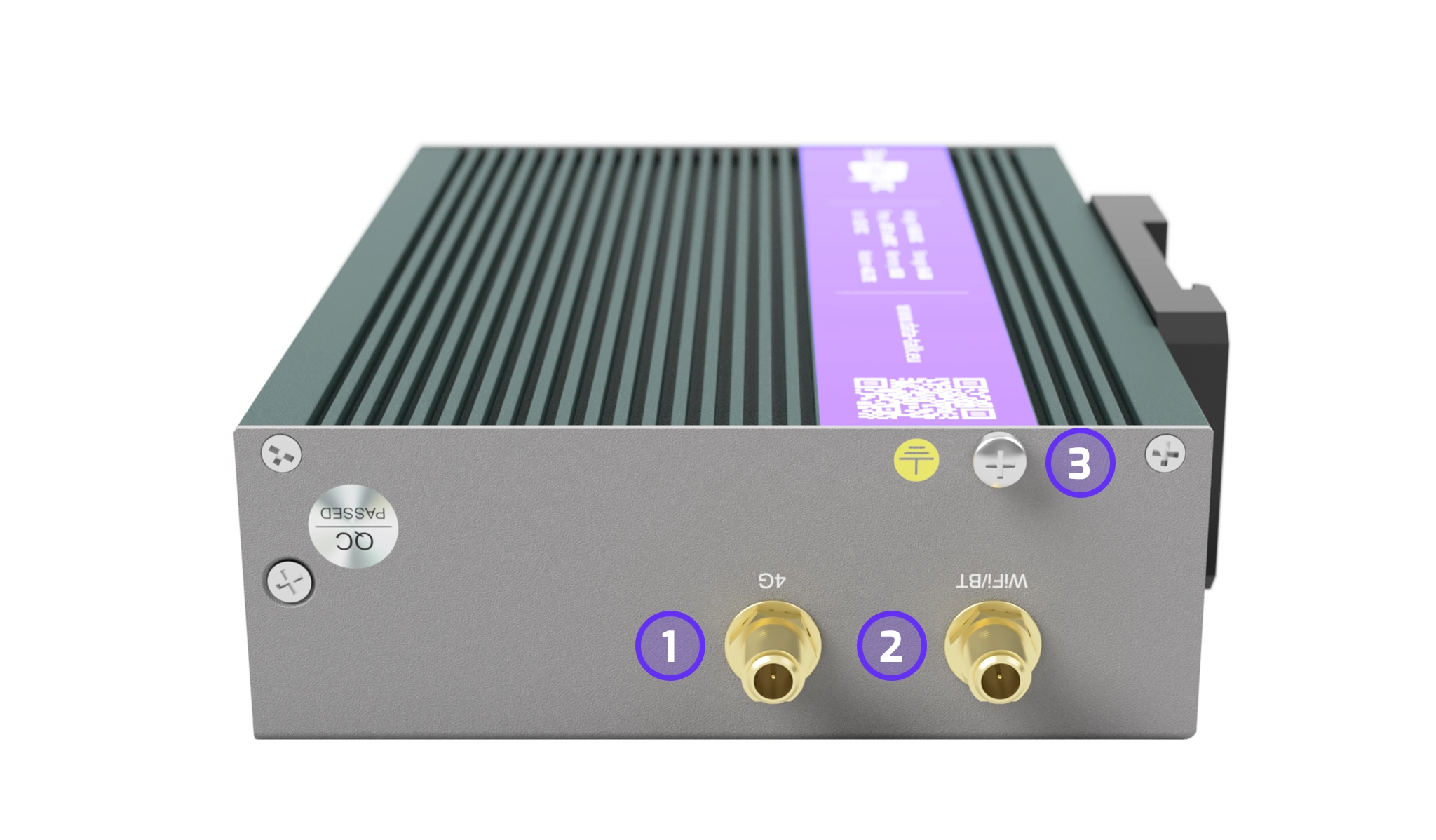

Feature	Description
1	4G LTE Antena
2	WiFi / BT Antena
3	Grounding point
